Class-A NURBS Surface Modeling for Consumer Products

Year: 2026 Client: Various

Class-A NURBS Surface Modeling for Consumer Products

NURBS-based 3D surface modeling for consumer products with emphasis on Class-A surface continuity, blending design freedom and engineering precision in Rhino 3D.

Outcomes

Explored advanced NURBS modeling techniques for high-quality consumer product surfaces. Started with early AutoCAD 3D point plotting, evolved through game mapping tools, then mastered Rhino 3D (preferred for personal work) with V-Ray rendering. Incorporated T-Splines for automotive-inspired Class-A continuity, plus NX, SolidWorks, 3ds Max, and brief CATIA v5 / ICEM Surf exposure in aerospace. Applied to consumer products focusing on smooth, manufacturable surfaces.

Skills

3D Modeling Advanced Surface Modeling DFM (Design for Manufacturing) Rendering

Tools

3D Printing CATIA / NX / SolidWorks Grasshopper Rhino 3D V-Ray

Tags

3D Modeling Class-A Surfaces Consumer Products GrassHopper NURBS Parametric Rhino3D Surface Continuity T-Splines V-Ray

Industrial Design

My 3D modeling journey began young with AutoCAD 3D point plotting and hatching. Progressed to specialized game map tools before discovering Rhino 3D — my core tool for its design freedom and precision. In college added Siemens NX, SolidWorks, and 3ds Max; integrated V-Ray for advanced rendering.

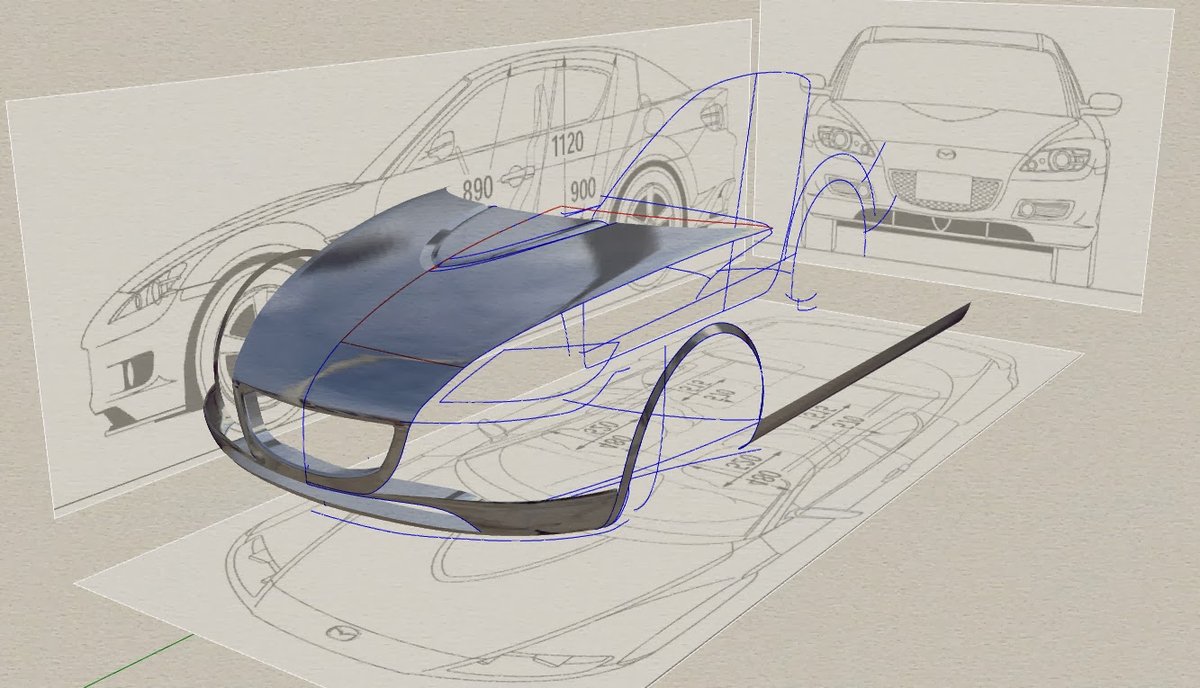

Driven by automotive aspirations, deeply explored T-Splines in Rhino for Class-A surface continuity (pre-Autodesk Alias). Continued refining NURBS techniques in Rhino and gained aerospace exposure with CATIA v5 / ICEM Surf guided by SEGULA Technologies.

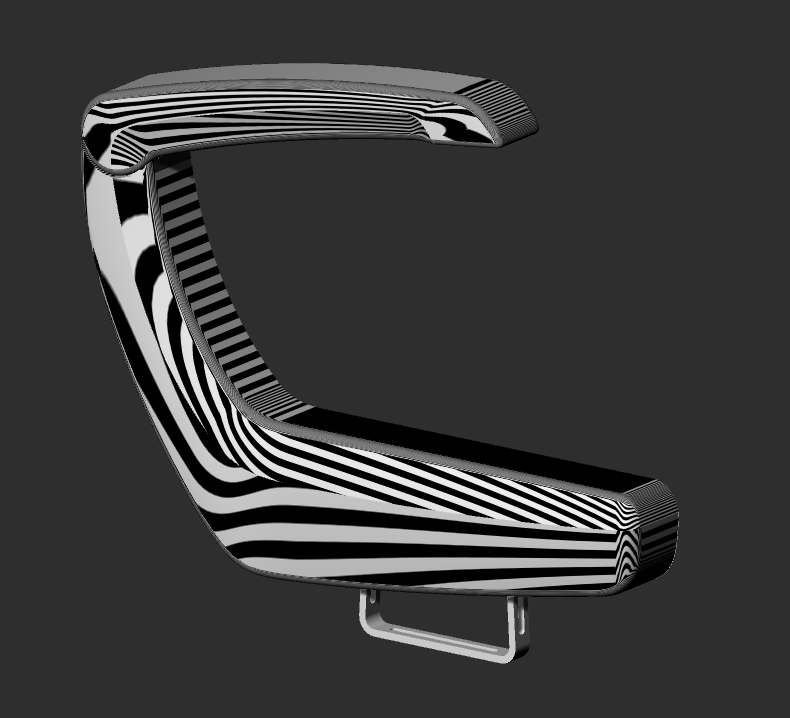

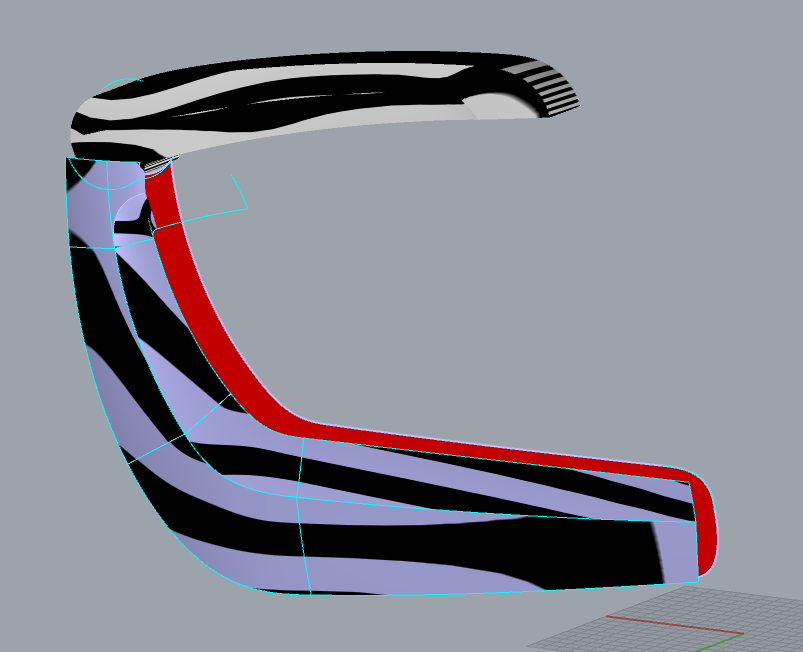

This project showcases NURBS surface modeling applied to consumer products, prioritizing G2/G3 continuity (where it matters) for premium aesthetics and DFM.
